Speed: The GCS ENCS Cluster

Abstract

This document primarily presents a quick start guide to the usage of the Gina Cody School of Engineering and Computer Science compute server farm called “Speed” – the GCS ENCS Speed cluster, managed by HPC/NAG of GCS ENCS, Concordia University, Montreal, Canada.

This document contains basic information required to use “Speed” as well as tips and tricks, examples, and references to projects and papers that have used Speed. User contributions of sample jobs and/or references are welcome. Details are sent to the hpc-ml mailing list.

1.1 Resources

1.2 Team

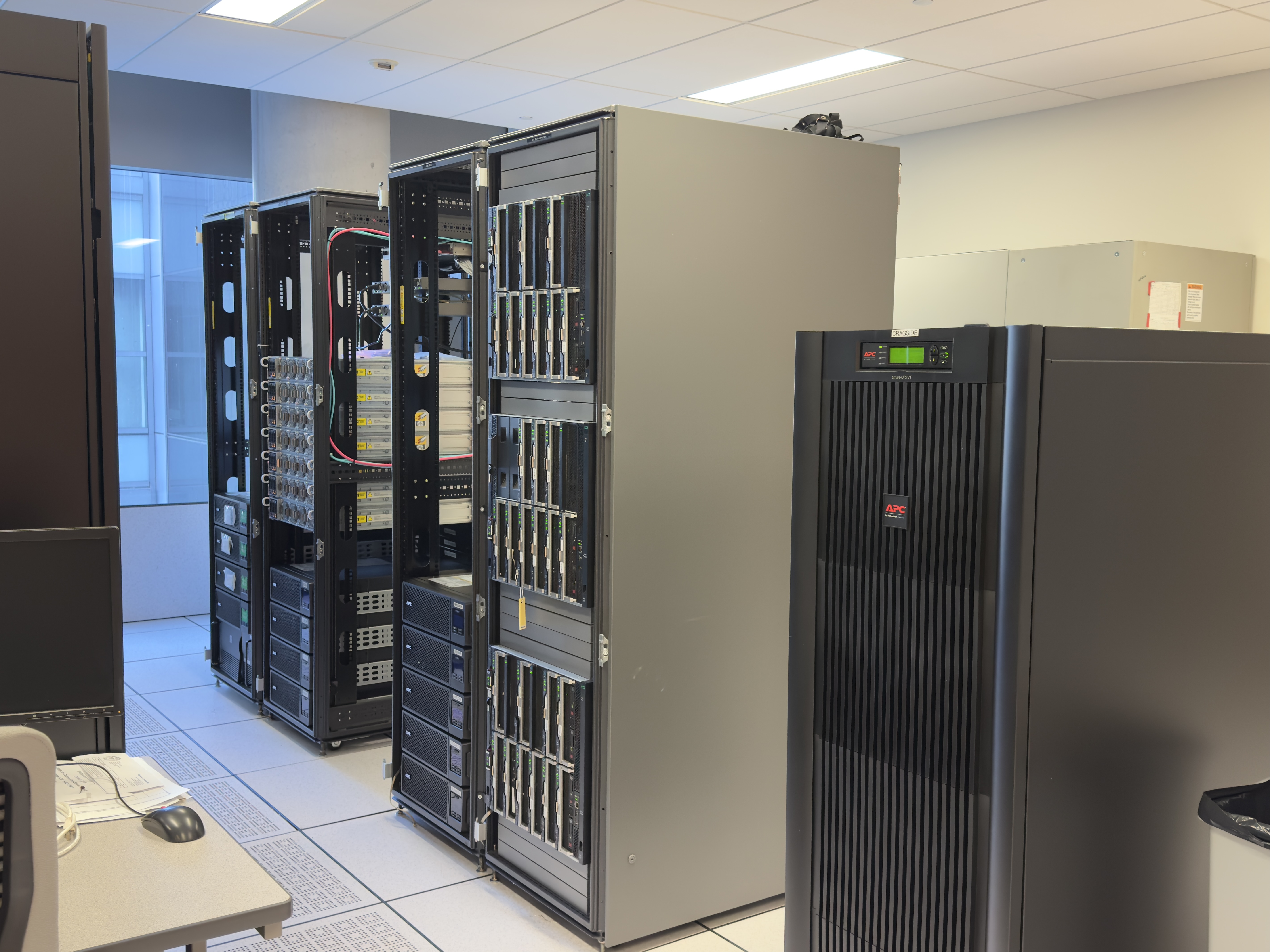

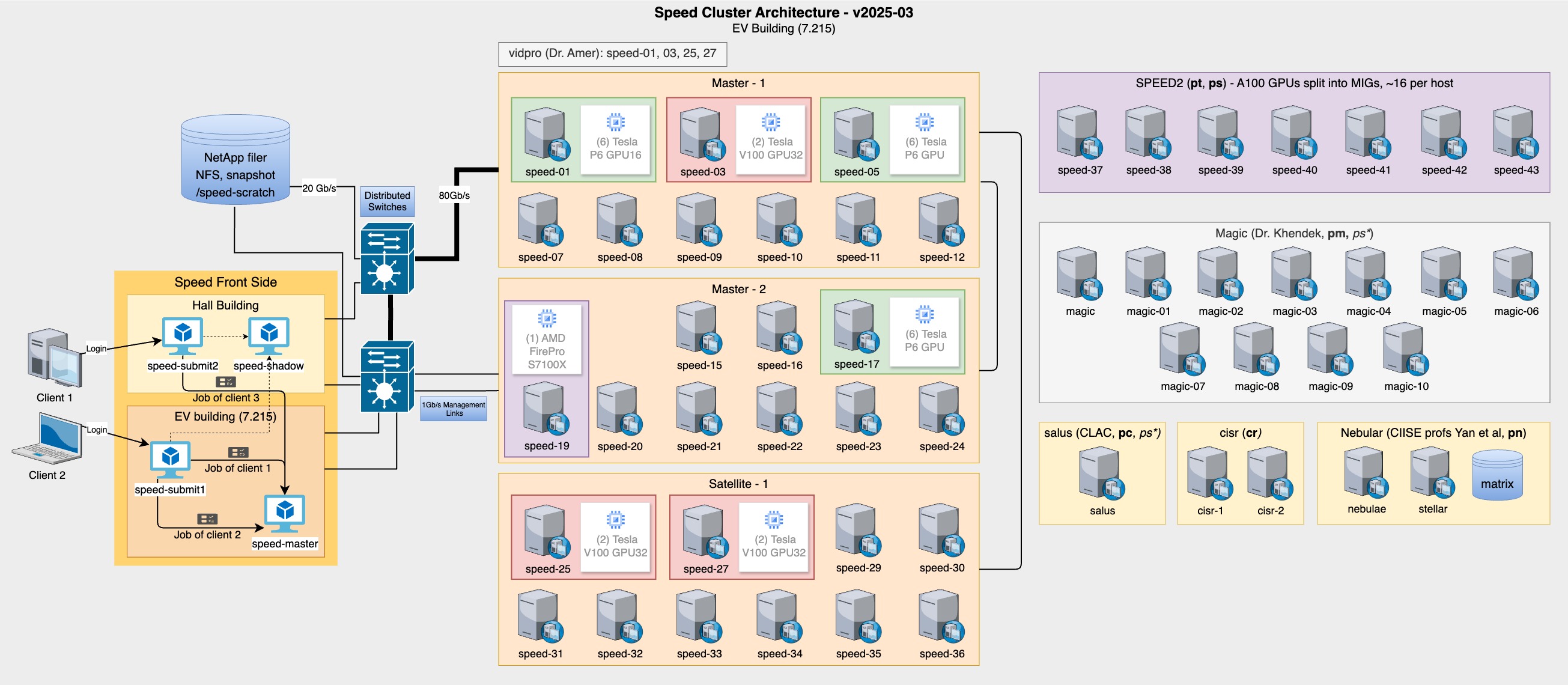

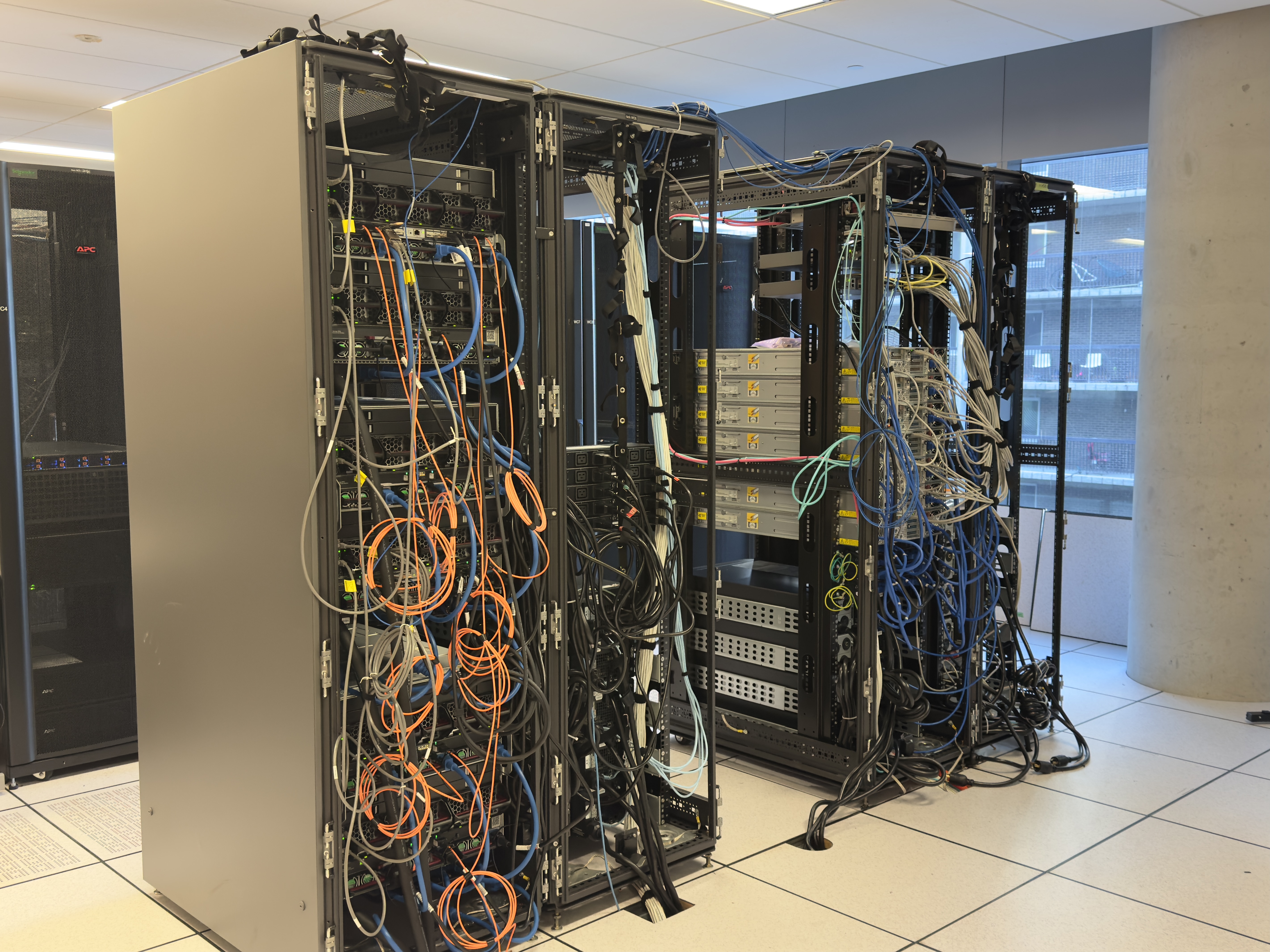

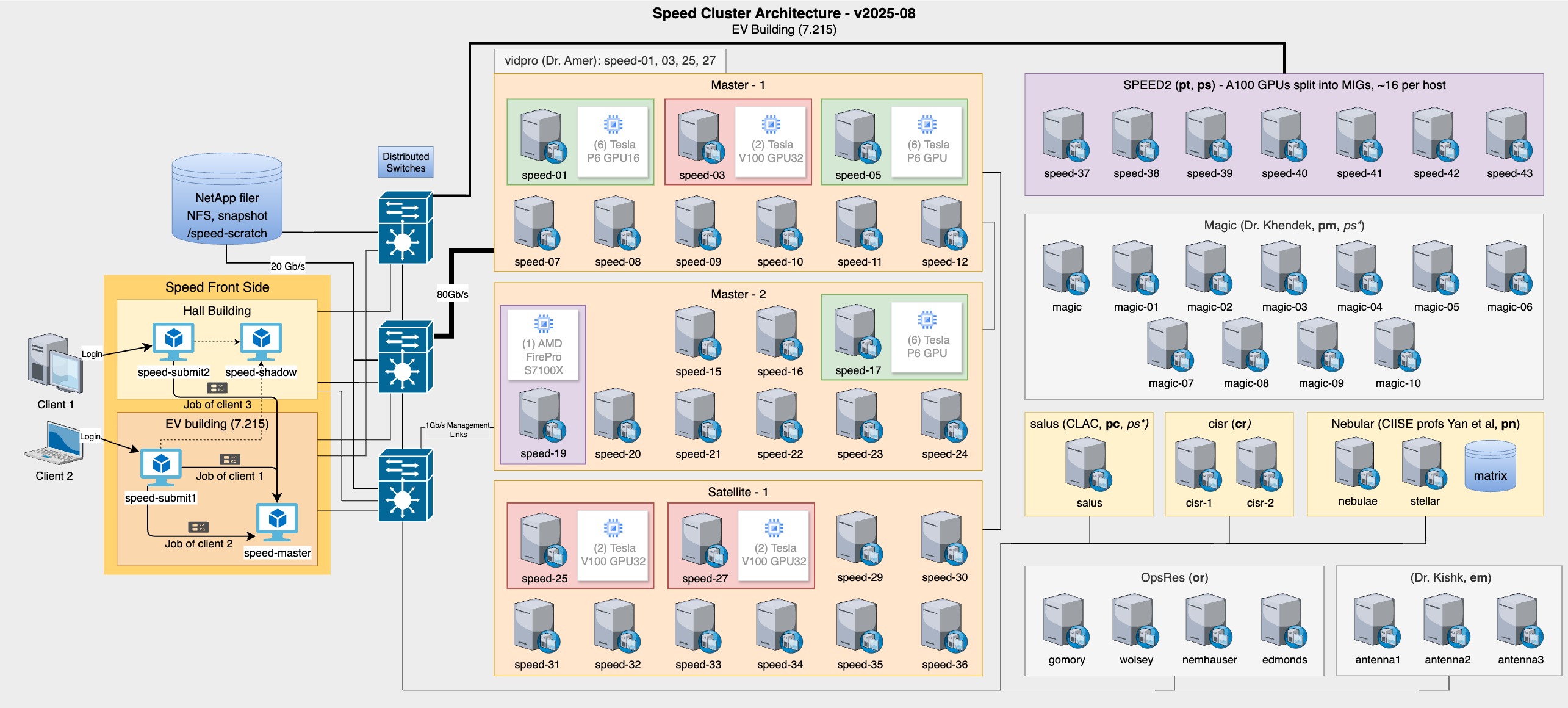

1.3 What Speed Comprises

1.4 What Speed Is Ideal For

1.5 What Speed Is Not

1.6 Available Software

We have a great number of open-source software available and installed on Speed – various Python, CUDA versions, C++/Java compilers, OpenGL, OpenFOAM, OpenCV, TensorFlow, OpenMPI, OpenISS, MARF [15], etc. There are also a number of commercial packages, subject to licensing contributions, available, such as MATLAB [5, 14], Abaqus [1], Ansys, Fluent [2], etc.

In particular, there are over 2200 programs available in /encs/bin and /encs/pkg under Scientific Linux 7 (EL7).

1.7 Requesting Access

After reviewing the “What Speed is” (Section 1.4) and “What Speed is Not” (Section 1.5), request access to the “Speed” cluster by emailing: rt-ex-hpc AT encs.concordia.ca. Faculty and staff may request the access directly. Students must include the following in their message:

2 Job Management

In these instructions, anything bracketed like so, <>, indicates a label/value to be replaced (the entire bracketed term needs replacement).

2.1 Getting Started

Before getting started, please review the “What Speed is” (Section 1.4) and “What Speed is Not” (Section 1.5). Once your GCS ENCS account has been granted access to “Speed”, use your GCS ENCS account credentials to create an SSH connection to speed (an alias for speed-submit.encs.concordia.ca).

2.1.1 SSH Connections

If you are connecting from home, and have a Mac or Linux system, in a terminal, this will connect you (on a single line):

All users are expected to have a basic understanding of Linux and its commonly used commands.

2.1.2 Environment Set Up

After creating an SSH connection to “Speed”, you will need to source the “Altair Grid Engine (AGE)” scheduler’s settings file. Sourcing the settings file will set the environment variables required to execute scheduler commands.

Based on the UNIX shell type, choose one of the following commands to source the settings file.

In order to set up the default ENCS bash shell, executing the following command is also required:

To verify that you have access to the scheduler commands execute qstat -f -u "*". If an error is returned, attempt sourcing the settings file again.

The next step is to copy a job template to your home directory and to set up your cluster-specific storage. Execute the following command from within your home directory. (To move to your home directory, type cd at the Linux prompt and press Enter.)

Tip: the default shell for GCS ENCS users is tcsh. If you would like to use bash, please contact rt-ex-hpc AT encs.concordia.ca.

For new ENCS Users, and/or those who don’t have a shell-startup script, based on your shell type use one of the following commands to copy a start up script from nul-uge’s. home directory to your home directory. (To move to your home directory, type cd at the Linux prompt and press Enter.)

Users who already have a shell-startup script, use a text editor, such as vim or emacs, to add the source request to your existing shell-startup environment (i.e., to the .tcshrc file in your home directory).

Note that you will need to either log out and back in, or execute a new shell, for the environment changes in the updated .tcshrc or .bashrc file to be applied (important).

2.2 Job Submission Basics

Preparing your job for submission is fairly straightforward. Editing a copy of the template.sh you moved into your home directory during Section 2.1.2 is a good place to start. You can also use a job script example from our GitHub’s (https://github.com/NAG-DevOps/speed-hpc) “src” directory and base your job on it.

2.2.1 Directives

Directives are comments included at the beginning of a job script that set the shell and the options for the job scheduler.

The shebang directive is always the first line of a script. In your job script, this directive sets which shell your script’s commands will run in. On “Speed”, we recommend that your script use a shell from the /encs/bin directory.

Directives that start with "#$", set the options for the cluster’s “Altair Grid Engine (AGE)” scheduler. The script template, template.sh, provides the essentials:

Replace, <jobname>, with the name that you want your cluster job to have; -cwd, makes the current working directory the “job working directory”, and your standard output file will appear here; -m bea, provides e-mail notifications (begin/end/abort); replace, <corecount>, with the degree of (multithreaded) parallelism (i.e., cores) you attach to your job (up to 32), be sure to delete or comment out the #$ -pe smp parameter if it is not relevant; replace, <memory>, with the value (in GB), that you want your job’s memory space to be (up to 500), and all jobs MUST have a memory-space assignment.

If you are unsure about memory footprints, err on assigning a generous memory space to your job so that it does not get prematurely terminated (the value given to h_vmem is a hard memory ceiling). You can refine h_vmem values for future jobs by monitoring the size of a job’s active memory space on speed-submit with:

Memory-footprint values are also provided for completed jobs in the final e-mail notification (as, “Max vmem”).

Jobs that request a low-memory footprint are more likely to load on a busy cluster.

2.2.2 Module Loads

As your job will run on a compute or GPU “Speed” node, and not the submit node, any software that is needed must be loaded by the job script. Software is loaded within the script just as it would be from the command line.

To see a list of which modules are available, execute the following from the command line on speed-submit.

Which, of course, can be shortened to match all that start with a particular letter:

2.2.3 User Scripting

The last part the job script is the scripting that will be executed by the job. This part of the job script includes all commands required to set up and execute the task your script has been written to do. Any Linux command can be used at this step. This section can be a simple call to an executable or a complex loop which iterates through a series of commands.

Every software program has a unique execution framework. It is the responsibility of the script’s author (e.g., you) to know what is required for the software used in your script by reviewing the software’s documentation. Regardless of which software your script calls, your script should be written so that the software knows the location of the input and output files as well as the degree of parallelism. Note that the cluster-specific environment variable, NSLOTS, resolves to the value provided to the scheduler in the -pe smp option.

Jobs which touch data-input and data-output files more than once, should make use of TMPDIR, a scheduler-provided working space almost 1 TB in size. TMPDIR is created when a job starts, and exists on the local disk of the compute node executing your job. Using TMPDIR results in faster I/O operations than those to and from shared storage (which is provided over NFS).

An sample job script using TMPDIR is available at /home/n/nul-uge/templateTMPDIR.sh: the job is instructed to change to $TMPDIR, to make the new directory input, to copy data from $SGE_O_WORKDIR/references/ to input/ ($SGE_O_WORKDIR represents the current working directory), to make the new directory results, to execute the program (which takes input from $TMPDIR/input/ and writes output to $TMPDIR/results/), and finally to copy the total end results to an existing directory, processed, that is located in the current working directory. TMPDIR only exists for the duration of the job, though, so it is very important to copy relevant results from it at job’s end.

2.3 Sample Job Script

Now, let’s look at a basic job script, tcsh.sh in Figure 1 (you can copy it from our GitHub page or from /home/n/nul-uge).

The first line is the shell declaration (also know as a shebang) and sets the shell to tcsh. The lines that begin with #$ are directives for the scheduler.

The scheduler command, qsub, is used to submit (non-interactive) jobs. From an ssh session on speed-submit, submit this job with qsub ./tcsh.sh. You will see, "Your job X ("qsub-test") has been submitted". The command, qstat, can be used to look at the status of the cluster: qstat -f -u "*". You will see something like this:

Remember that you only have 30 seconds before the job is essentially over, so if you do not see a similar output, either adjust the sleep time in the script, or execute the qstat statement more quickly. The qstat output listed above shows you that your job is running on node speed-05, that it has a job number of 144, that it was started at 16:39:30 on 12/03/2018, and that it is a single-core job (the default).

Once the job finishes, there will be a new file in the directory that the job was started from, with the syntax of, "job name".o"job number", so in this example the file is, qsub test.o144. This file represents the standard output (and error, if there is any) of the job in question. If you look at the contents of your newly created file, you will see that it contains the output of the, module list command. Important information is often written to this file.

2.4 Common Job Management Commands Summary

2.5 Advanced qsub Options

In addition to the basic qsub options presented earlier, there are a few additional options that are generally useful:

2.6 Array Jobs

Array jobs are those that start a batch job or a parallel job multiple times. Each iteration of the job array is called a task and receives a unique job ID.

The default and output and error-files are job_name.[o|e]job_id and
job_name.[o|e]job_id.task_id. This means that Speed creates an output and an error-file for each task generated by the array-job as well as one for the super-ordinate array-job. To alter this behavior use the -o and -e option of qsub.

For more details about Array Job options, please review the manual pages for qsub by executing the following at the command line on speed-submit man qsub.

2.7 Requesting Multiple Cores (i.e., Multithreading Jobs)

For jobs that can take advantage of multiple machine cores, up to 32 cores (per job) can be requested in your script with:

Do not request more cores than you think will be useful, as larger-core jobs are more difficult to schedule. On the flip side, though, if you are going to be running a program that scales out to the maximum single-machine core count available, please (please) request 32 cores, to avoid node oversubscription (i.e., to avoid overloading the CPUs).

Core count associated with a job appears under, “states”, in the, qstat -f -u "*", output.

2.8 Interactive Jobs

Job sessions can be interactive, instead of batch (script) based. Such sessions can be useful for testing and optimising code and resource requirements prior to batch submission. To request an interactive job session, use, qlogin [options], similarly to a qsub command-line job (e.g., qlogin -N qlogin-test -l h_vmem=1G). Note that the options that are available for qsub are not necessarily available for qlogin, notably, -cwd, and, -v.

2.9 Scheduler Environment Variables

The scheduler presents a number of environment variables that can be used in your jobs. Three of the more useful are TMPDIR, SGE_O_WORKDIR, and NSLOTS:

2.10 SSH Keys For MPI

Some programs effect their parallel processing via MPI (which is a communication protocol). An example of such software is Fluent. MPI needs to have ‘passwordless login’ set up, which means SSH keys. In your NFS-mounted home directory:

2.11 Creating Virtual Environments

The following documentation is specific to the Speed HPC Facility at the Gina Cody School of Engineering and Computer Science.

2.11.1 Anaconda

To create an anaconda environment in your speed-scratch directory, use the prefix option when executing conda create. For example, to create an anaconda environment for ai_user, execute the following at the command line:

Note: Without the prefix option, the conda create command creates the environment in texttta_user’s home directory by default.

Activate an Environment. Activate the environment speedscratcha_usermyconda as follows

This will install pip and pip’s dependencies, including python, into the environment.

Important Note: pip (and pip3) are used to install modules from the python distribution while conda install installs modules from anaconda’s repository.

2.12 Example Job Script: Fluent

The job script in Figure 3 runs Fluent in parallel over 32 cores. Of note, we have requested e-mail notifications (-m), are defining the parallel environment for, fluent, with, -sgepe smp (very important), and are setting $TMPDIR as the in-job location for the “moment” rfile.out file (in-job, because the last line of the script copies everything from $TMPDIR to a directory in the user’s NFS-mounted home). Job progress can be monitored by examining the standard-out file (e.g., flu10000.o249), and/or by examining the “moment” file in /disk/nobackup/<yourjob> (hint: it starts with your job-ID) on the node running the job. Caveat: take care with journal-file file paths.

2.13 Example Job: efficientdet

The following steps describing how to create an efficientdet environment on Speed, were submitted by a member of Dr. Amer’s research group.

2.14 Java Jobs

Jobs that call java have a memory overhead, which needs to be taken into account when assigning a value to h_vmem. Even the most basic java call, java -Xmx1G -version, will need to have, -l h_vmem=5G, with the 4-GB difference representing the memory overhead. Note that this memory overhead grows proportionally with the value of -Xmx. To give you an idea, when -Xmx has a value of 100G, h_vmem has to be at least 106G; for 200G, at least 211G; for 300G, at least 314G.

2.15 Scheduling On The GPU Nodes

The primary cluster has two GPU nodes, each with six Tesla (CUDA-compatible) P6 cards: each card has 2048 cores and 16GB of RAM. Though note that the P6 is mainly a single-precision card, so unless you need the GPU double precision, double-precision calculations will be faster on a CPU node.

But do need this statement, which attaches either a single GPU, or, two GPUs, to the job:

Single-GPU jobs are granted 5 CPU cores and 80GB of system memory, and dual-GPU jobs are granted 10 CPU cores and 160GB of system memory. A total of four GPUs can be actively attached to any one user at any given time.

Very important note regarding TensorFlow and PyTorch: if you are planning to run TensorFlow and/or PyTorch multi-GPU jobs, do not use the tf.distribute and/or
torch.nn.DataParallel functions, as they will crash the compute node (100% certainty). This appears to be the current hardware’s architecture’s defect. The workaround is to either manually effect GPU parallelisation (TensorFlow has an example on how to do this), or to run on a single GPU.

Users without permission to use the GPU nodes can submit jobs to the g.q queue but those jobs will hang and never run.

There are two GPUs in both speed-05 and speed-17, and one in speed-19. Their availability is seen with, qstat -F g (note the capital):

This status demonstrates that all five are available (i.e., have not been requested as resources). To specifically request a GPU node, add, -l g=[#GPUs], to your qsub (statement/script) or qlogin (statement) request. For example, qsub -l h_vmem=1G -l g=1 ./count.sh. You will see that this job has been assigned to one of the GPU nodes:

And that there are no more GPUs available on that node (hc:gpu=0). Note that no more than two GPUs can be requested for any one job.

2.15.1 CUDA

When calling CUDA within job scripts, it is important to create a link to the desired CUDA libraries and set the runtime link path to the same libraries. For example, to use the cuda-11.5 libraries, specify the following in your Makefile.

In your job script, specify the version of gcc to use prior to calling cuda. For example: module load gcc/8.4 or module load gcc/9.3

2.15.2 Special Notes for sending CUDA jobs to the GPU Queue

It is not possible to create a qlogin session on to a node in the GPU Queue (g.q). As direct logins to these nodes is not available, jobs must be submitted to the GPU Queue in order to compile and link.

For CUDA to compile properly for the GPU queue, edit your Makefile replacing usrlocalcuda with one of the above.

3 Conclusion

The cluster is, “first come, first served”, until it fills, and then job position in the queue is based upon past usage. The scheduler does attempt to fill gaps, though, so sometimes a single-core job of lower priority will schedule before a multi-core job of higher priority, for example.

3.1 Important Limitations

3.2 Tips/Tricks

3.3 Use Cases

A History

A.1 Acknowledgments

A.2 Phase 3

Phase 3 had 4 vidpro nodes added from Dr. Amer totalling 6x P6 and 6x V100 GPUs added.

A.3 Phase 2

Phase 2 saw 6x NVIDIA Tesla P6 added and 8x more compute nodes. The P6s replaced 4x of FirePro S7150.

A.4 Phase 1

B Frequently Asked Questions

B.1 How to resolve“Disk quota exceeded” errors?

B.1.1 Probably Cause

The ‘‘Disk quota exceeded’’ Error occurs when your application has run out of disk space to write to. On Speed this error can be returned when:

B.1.2 Possible Solutions

B.1.3 Example of setting working directories for COMSOL

C Sister Facilities

Below is a list of resources and facilities similar to Speed at various capacities. Depending on your research group and needs, they might be available to you. They are not managed by HPC/NAG of AITS, so contact their respective representatives.
